Модуль Architectural может быть использован для создания архитектурных планов, видов, сечений и фасадов, облегчает проектирование многослойных стен, нанесение архитектурных размеров и позволяет быстро создавать описание чертежа. Модуль включает в себя большую библиотеку мебели и других элементов интерьера. Кроме того, приложение может использоваться для проектирования планов эвакуации и пожаротушения. Приложение обеспечивает быстрое построение планов зданий и создание планов эвакуации и систем пожарной безопасности.

CADprofi Architectural module can be bought separately or in full CADprofi Suite package, which contains all 4 CADprofi modules for 50% of the price.

Ключевые возможности:

Нажмите на функцию, чтобы узнать больше

Designing stairs

Designing stairs

Designing of stairs with the possibility of determining the dimensions and number of treads. Various types of stairs, incl. straight, spiral, L stairs, U stairs, U two-split stairs with a landing, stairs with storage, concrete, cheek stairs, shelf stairs, carpet stairs, stairs elements, from which user can build stairs with any number of treads, are available.

Designing roofs

Designing roofs

Insertion of roofs with the possibility of calculating surface slopes, roof angles and its height.

Furniture library

Furniture library

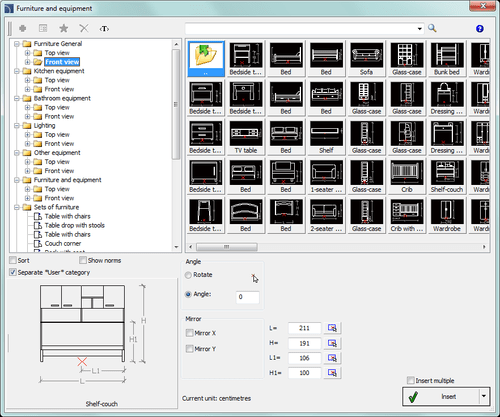

Library of interior design and landscape architecture: furniture, sanitary equipment, electronics and household appliances, plants, vehicles, swimming pools, jacuzzi, saunas and others.

Woodwork

Parametric woodwork

Parametric woodwork (doors, windows, garage doors) with automatic detection of the wall thickness. Plan, cross-section, and elevation views are available. For parametrical objects user can specify any dimensions and properties.

Drawing walls

Drawing walls

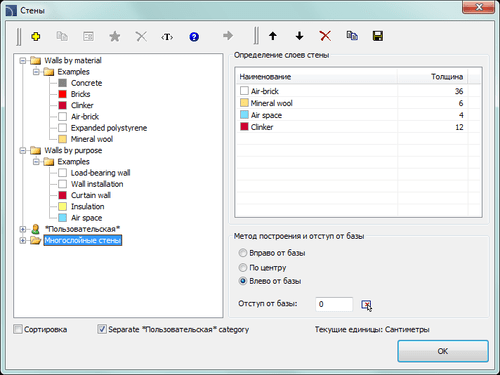

Drawing of single and multi-layered walls with the ability to define any material and thickness of each wall layer and the function of drawing walls with filled insulation.

Gutter systems

Gutter systems

A rich library of steel, PVC and rectangular gutter systems as well as downpipes with elements of equipment and assembly accessories (hooks, drain funnels, bottoms, elbows, tees, internal/external corners, clamp connectors, spouts, settling tanks).

Dimensioning

Architectural dimensioning

Architectural dimensioning that is suited for construction projects. Program allows user to change styles and dimension units regardless of which designing unit was used in the drawing (e.g. dimensioning in cm of drawing that were prepared in mm).

Room definitions

Room definitions

Automatic defining and marking of rooms with surface calculation. Configurable room descriptions.

Emergency routes

Emergency routes

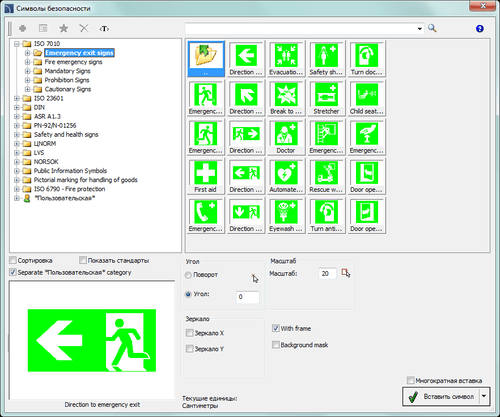

Drawing and editing emergency escape routes and plans. Library of symbols, marks and signs from the health and safety, fire protection and public information.

Read more about other CADprofi Architectural key features
  • Drawing walls along the selected edge with the possibility to determine the offset from the indicated points or other objects and the mode of drawing walls along the indicated infoline.

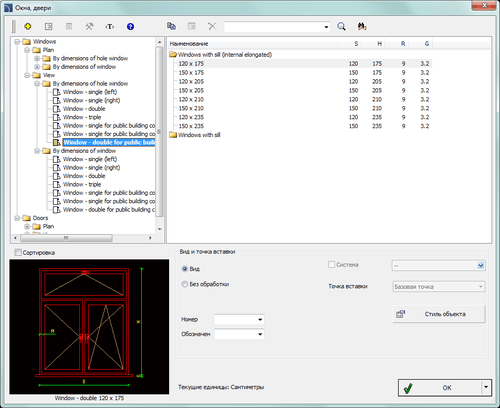

  • A convenient configurator that allows for a visual selection of schemes of windows, balcony doors, internal/external door leaves, garage doors (also industrial), as well as door and window openings, wall entries, recesses and furrows.
  • Dynamic determination of the direction of doors insertion that facilitate the correct positioning
  • Elements of gravity ventilation and single and double-draft chimney systems with Schiedel and HOCH system solutions. Convenient configurator for designing chimney flues.
  • A rich library of chimneys, including single-glazed, corner, triple-glazed, double-sided fireplaces, with a water jacket, gas, electric, wood, bio fireplaces and goats.
  • Containers and waste containers.

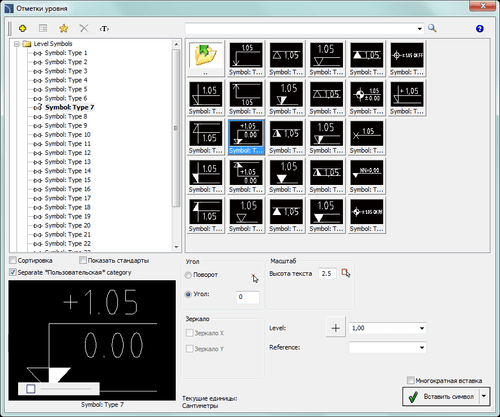

  • Level symbols with automatic filling of indicated points ordinates.
  • Architectural symbols: holes, ventilation ducts, carpentry and woodwork markings, terrain slopes, topographic symbols, arrows, general symbols, etc.
  • Designing is done in accordance with designers habits and requirements.
  • Metric or imperial units available.
  • Tools for full description and projects detailing.
  • Automatic numbering of objects.
  • A system of quick search of products in the database.
  • Access to CAD libraries of many world known manufacturers.
  • Possibility to import and add to the program user's own symbols or objects.
  • Automatic layer management and printing styles allows user to achieve prints with predefined line thickness, colours, etc.
  • Possibility to define the list of "favourites" that allows to work in accordance with user habits and preferences.
  • Possibility of adding your own translations or changing the terminology that is used in the program.
  • Smart insertion of objects with the possibility of attaching them to other objects by using the "one-click" technology.
  • Intelligent commands that allow for performing quick editing operations on symbols and objects directly in the drawing.
  • The Quick edit (QED) command that allows user to perform basic editing operations on symbols and objects, including edit, attributes and descriptions, mirror, scale, copy, rotate, delete, move, insert alternative view.
  • Possibility to create any diagrams, flowcharts, technological and functional schemes, algorithms.
  • Possibility to create bill of materials and specifications that can be either printed or exported to multiple formats including pdf, rtf (doc), xls, xml, csv, html and more.
  • Automatic creation of graphical legends.
  • On-line help with many illustrations and exemplary videos that explain in details how to use the program.
  • On-line update system.

  • Drawing walls along the selected edge with the possibility to determine the offset from the indicated points or other objects and the mode of drawing walls along the indicated infoline.
  • A convenient configurator that allows for a visual selection of schemes of windows, balcony doors, internal/external door leaves, garage doors (also industrial), as well as door and window openings, wall entries, recesses and furrows.
  • Dynamic determination of the direction of doors insertion that facilitate the correct positioning
  • Elements of gravity ventilation and single and double-draft chimney systems with Schiedel and HOCH system solutions. Convenient configurator for designing chimney flues.
  • A rich library of chimneys, including single-glazed, corner, triple-glazed, double-sided fireplaces, with a water jacket, gas, electric, wood, bio fireplaces and goats.
  • Containers and waste containers.
  • Level symbols with automatic filling of indicated points ordinates.
  • Architectural symbols: holes, ventilation ducts, carpentry and woodwork markings, terrain slopes, topographic symbols, arrows, general symbols, etc.
  • Designing is done in accordance with designers habits and requirements.
  • Metric or imperial units available.
  • Tools for full description and projects detailing.
  • Automatic numbering of objects.
  • A system of quick search of products in the database.
  • Access to CAD libraries of many world known manufacturers.
  • Possibility to import and add to the program user's own symbols or objects.
  • Automatic layer management and printing styles allows user to achieve prints with predefined line thickness, colours, etc.
  • Possibility to define the list of "favourites" that allows to work in accordance with user habits and preferences.
  • Possibility of adding your own translations or changing the terminology that is used in the program.
  • Smart insertion of objects with the possibility of attaching them to other objects by using the "one-click" technology.
  • Intelligent commands that allow for performing quick editing operations on symbols and objects directly in the drawing.
  • The Quick edit (QED) command that allows user to perform basic editing operations on symbols and objects, including edit, attributes and descriptions, mirror, scale, copy, rotate, delete, move, insert alternative view.
  • Possibility to create any diagrams, flowcharts, technological and functional schemes, algorithms.
  • Possibility to create bill of materials and specifications that can be either printed or exported to multiple formats including pdf, rtf (doc), xls, xml, csv, html and more.
  • Automatic creation of graphical legends.
  • On-line help with many illustrations and exemplary videos that explain in details how to use the program.
  • On-line update system.

Evacuation plans and fire protection installations

CADprofi software is a comprehensive application that helps in designing in both construction and industry, with particular emphasis on plans and systems that ensure the safety of people staying in buildings. Read more...
Мультиязычность
Мультиязычность

Приложение доступно
на 25 языках.

Читать далее
Основанный на Unicode стандарте интерфейс пользователя поддерживает 25 языков: Русский, Английский, Болгарский, Китайский упрощенный, Хорватский, Чешский, Датский, Голландский, Финский, Французский, Немецкий, Греческий, Венгерский, Итальянский, Польский, Португальский, Румынский, Сербский, Словенский, Испанский, Шведский, Японский, Украинский и Турецкий.

Наше программное обеспечение можно купить через дистрибьюторскую сеть во многих странах, благодаря этому вы можете получить прямую техническую поддержку на родном языке.
BIM
BIM

Возможность создания
данных в технологии BIM.

Читать далее
BIM (Building Information Modeling) technology is increasingly used in building design. Classification and management of layers based on Open BIM (IFC classification) is available in the CADprofi program. BIM data is included in specifications and can be transferred to applications that are used during the investment phase.

Additionally our company creates data in BIM (including rfa Revit format) for many manufacturers. 3D models included in our software can also be used in many CAD programs that allow to import and export files in IFC standard.

Совместимость
Совместимость

Приложение совместимо с
большинством базовых программ САПР.

Читать далее
Десятки тысяч пользователей со всего мира уже выбрали приложение CADprofi. Именно поэтому мы всегда заботимся о сохранении полной совместимости со всеми CAD приложениями в каждой новой версии наших продуктов. CADprofi автоматически настраивается для оптимальной совместимости с любой из выбранных платформ (AutoCAD, ARES, BricsCAD, GstarCAD, progeCAD, ZWCAD и многие другие).

Чертежи, созданные с CADprofi, полностью совместимы с форматами DWG и DXF и могут быть отредактированы в любом CAD приложении без необходимости запуска и использования наших продуктов. Мы постоянно совершенствуем программный комплекс CADprofi. Несколько раз в год выходят новые версии с новыми возможностями. Обновления в режиме онлайн позволяют каждому пользователю получить доступ к нашим последним разработкам.
