Exporting rooms to DIALux

Export Rooms to DIALux Command allows user to create a *.STF file containing the boundaries of rooms defined using the Define rooms command from the CADprofi Architecture module .

The created file will contain ready-made room boundaries compatible with the DIALux program , so after opening it we will receive a ready-to-use outline of our building or room.



6 Procedures

Exporting rooms to DIALux

1.    In the architectural drawing, add room tags using the Define rooms command from the CADprofi Architecture module.

2.    From the CADprofi Electrical toolbar, menu or ribbon select the Export rooms to DIALux command.

3.    Select the area from which room you want to export, confirm by pressing Enter.

4.    In the Save As dialog box, select a location and name for the file you are creating, and click Save .



Notice

The STF file format is supported in DIALux 4, the DIALux evo version does not currently support this format.

Working in DIALux

Saving in *.STF format allows user to open the file directly as a DIALux project . To do this, change the file format in the Open window .

After opening the file exported from CADprofi, the exported rooms will be visible along with their names placed in tags.

It is recommended to import a *.dxf/*.dwg drawing with a similar project into such an opened file.

Hint
In the peak import options, select the appropriate unit and the World Coordinate System as the initial planning location with the default X, Y, and Z values of 0.

After selecting the luminaires and designing the lighting in the DIALux program, the entire project should be saved again in the *.STF format.



6 Procedures

Saving in STF format of the DIALux program

1.    From the File > Export menu, select Save as STF.

2.    Specify the location where the file will be saved and its name, click Save .

Or

1.    From the File menu, select Save As .

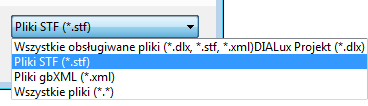

2.    In the Save window , change the supported file format to All Files.

3.    Select a save location.

4.    In the File name field, enter the name and extension, e.g., Projekt1.stf.

5.    Click Save .



Notice

The STF file format does not contain complete information about a DIALux project. Therefore, it is recommended to save created projects in *.DLX format.
