When numbering objects, additional information about the numbers is saved in their internal data. Deleting only the visible designation with the number from the drawing does not delete the internal numbering data from the object. For this reason, the Delete numbers command should be used to delete numbers from objects. After activating the number deletion mode, select the desired objects or numbers. This deletes both the internal numbering information and the number texts and leader lines.

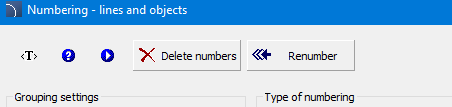

Line and object numbering dialog box 2.
6 Procedures
Deleting numbers
1.
Run the Numbering - lines and objects
command.
2. Select an object that has a number. A dialog box will open.
3. Select Delete Numbers to start the delete number mode.
4. The number of the first selected object will be deleted.
5. (Optional) Select additional objects by selecting them or using the selection window.
6. Finish deleting numbers by pressing Esc or Enter.
|
Notice Numbering is implicitly
removed from objects when: |
