Attributes and descriptions

During the symbols and objects insertion, CADprofi program is adding various descriptions and technical parameters to them. This data is stored as attributes. The Attributes and descriptions command allows to edit the attributes, as well as to add descriptions (as a simple text) into the drawing. All data that is used in the attributes can be later used during the BOM creation.

After user chooses the command he should indicate an object, whose parameters he would like to edit. This command gives the possibility to edit many objects thank to the Multiple function ("M" key). As an effect it will be possible to edit parameters of all indicated blocks.

After indicating the objects, a new dialog window that contains all attributes will appear.

If user has selected several objects, it's possible that a ***Varies*** value may appear in some data. It means that objects have got different values of a specific parameter. Editing this parameter will also edit it in all of the selected blocks. If this parameter won't be edited then the value won't change in any of the selected blocks.

 Attributes and descriptions

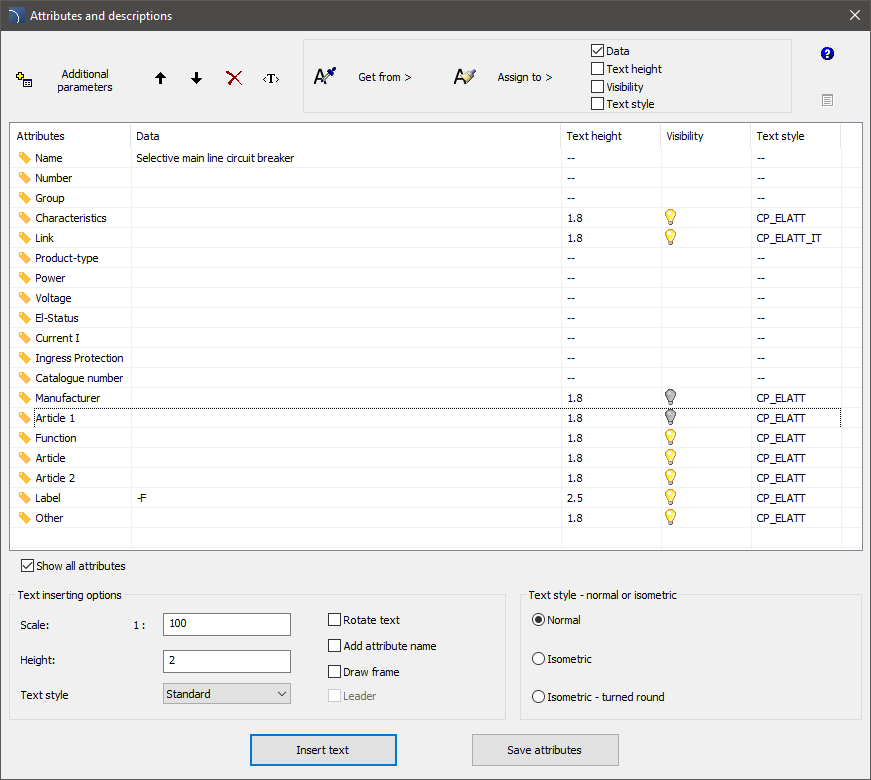

Attributes and descriptions dialog window

The Attributes and descriptions dialog window contains the following elements:

List of parameters - list that contains all attributes and their data, text height, visibility and text style of selected blocks.

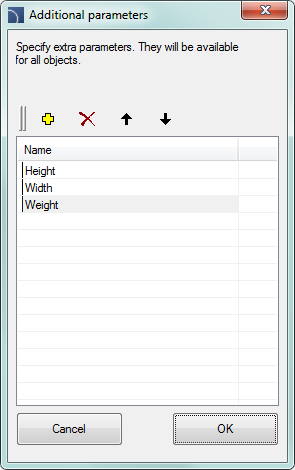

Additional parameters - this button opens a new window of additional parameters, that are defined by the user.

 Recover parameters - allows to recover additional parameters from the unassigned values that are contained in the object. These parameters will receive the default name, that's why it is recommended to change it.

Get from > - allows user to get for the selected attributes: data, text height, visibility or text style, from the object indicated in the drawing. If the specified object does not have any parameters or their value is empty the operation will not be performed.

Assign to > - allows to assign selected attributes: data, text height, visibility or text style to objects indicated in the drawing. This is a convenient option that's used to agree objects attributes.

  Move selected rows up/down - moves the selected attribute up/down one position on the list. This option is needed when user wants to select attributes and insert them in a specific order as a text into the drawing.

 Delete contents of selected attributes - clears data of selected attributes.

Show all attributes - switches between two views: show all available attributes and show only attributes that are filled with data.

Text inserting options - options that specify how the text of selected attribute will be inserted to the design.

Scale - allows to specify the scale of inserted text.

Height - specifies the block text height in millimeters.

Text style - specifies the block text height in millimeters.

Rotate text - enable/disable the ability to rotate the text when inserting it into the drawing.

Add attribute name - enable/disable to add in the inserting text block also the name of the attribute.

Draw frame - enable/disable the frame for the text, that will be inserted into the drawing.

Leader - allows to draw a line between the object and the inserted text.

Text style - normal or isometric - allows to specify the text style in both normal and isometrical views.

Save attributes - closes the dialog window and saves all the changes in selected blocks.

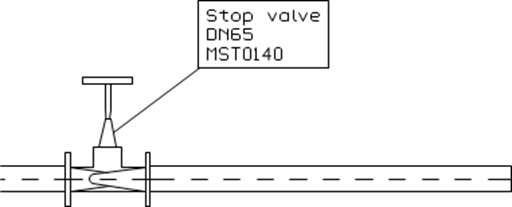

Insert text - saves all the changes made in the selected blocks, and allows to insert to the drawing the value of selected attributes as a plain text. In order to insert the text, user should indicate a point that specifies the first line of text. Depending on the rotation option, it may be necessary to indicate a second point that specifies the text rotation angle. Instead of indicating a second point it's possible to indicate the angle size (e.g. "0" or "90"). In this case, the text will be inserted horizontally.
The style of the inserted text depends on the current CAD program style.

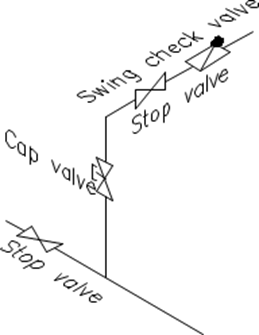

Description in axonometric drawings

The Insert text command allows to insert texts in axonometric drawings. In order to insert text in isometry or dimetry user should select the Text style - normal or isometric option.
