command allows to freely edit
CADprofi symbols or objects. This command is particularly important when
editing objects or multivariant symbols such as: welding marks, roughness marks,
armature, apparatus and many more.The CADprofi - Edit command allows to freely edit
CADprofi symbols or objects. This command is particularly important when
editing objects or multivariant symbols such as: welding marks, roughness marks,
armature, apparatus and many more.
To change the elements, select the CADprofi - Edit command and choose the desired symbol/object. A dialog window will appear which was used to insert the indicated symbol. Make all the necessary changes in the dialog window. After clicking the Insert, Apply or OK button the symbol/object will be updated on the drawing accordingly to the changes that we made.

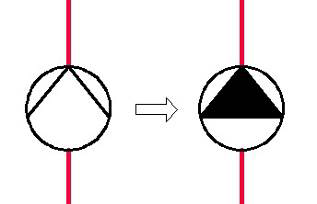

The CADprofi - Edit command also allows to convert a symbol in an alternative one.
|
|
