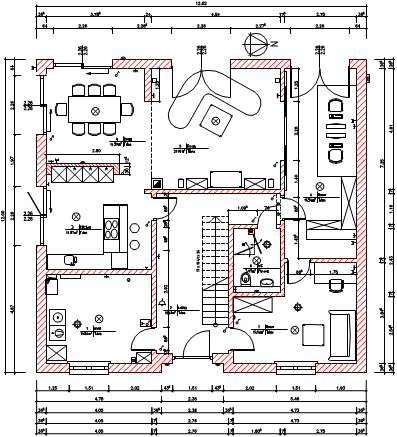

CADprofi Architectural helps user with creating construction plans, cross-sections and elevation views. It also allows to create composite walls, insert windows and doors, create architectural dimensioning, create descriptions and use objects from the furnishings and furniture library. A unique program feature is the possibility to design evacuation and safety plans.
CADprofi Architectural is a sufficient addition to the base CAD programs, thanks to which user can create and edit building blueprints much faster.
Creating architectural drawings is associated with drawing walls, inserting both woodwork objects and additional equipment as well as with describing drawings. CADprofi program offers the designer appropriate commands, which makes work easier and faster. Many options automate frequently performed actions, that's why it's very important to know how the program works.
An important stage in the project creation is to describe the elements and rooms, so it is possible to create various BOMs.
After installing the program, the default unit is millimeters. Architectural designs are usually created in centimeters. User can change the design unit by running the CADprofi - Options command and in the Units of drawing field select Centimeters.
