The library contains modular and measuring equipment, low-voltage distribution devices, and switchgear housings from ABB .

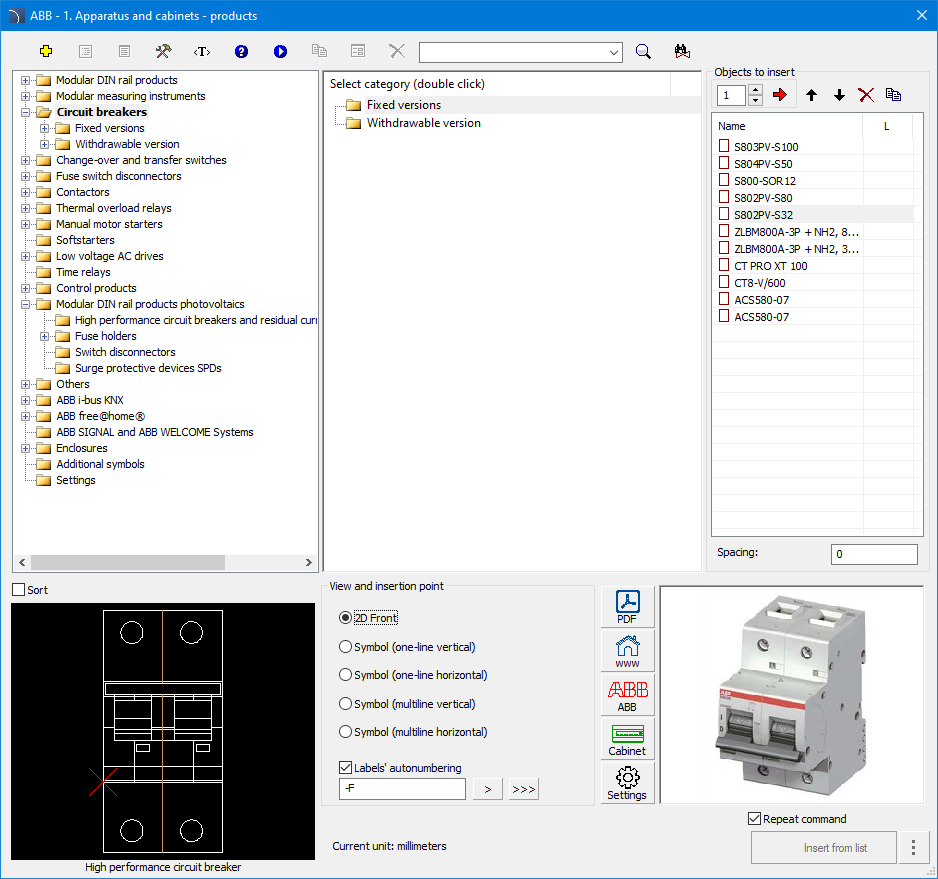

ABB dialog box - “Low voltage devices and switchboards”
This button opens a PDF file containing technical information about the
selected product (product group).
A command that allows user to select a casing for objects selected from a
drawing.
Low voltage device settings.
Inserting apparatus
Program allows user to insert
single views or symbols into your projects. It's also possible to simultaneously
insert multiple views of devices or symbols previously added to the list. To add
items to the list, double- click the selected product or press the Add to List
button.
The list of inserted objects can be organized using the available options :
Copy
, Delete
, Down
or Up
.
